*Mature technology of electrical panel, make less maintenance.
*Famous brands of electrical components, such as Schneider, Fuji, Omron, and so on.
*Imported bearings and motors are selected strictly, in able to cut down the noise
while the machine is working.
FEATURES:
Mature technology of electrical panel, make less maintenance.
Famous brands of electrical components, such as Schneider,
Imported bearings and motors are selected strictly, in able to cut down the noise while the machine is working.

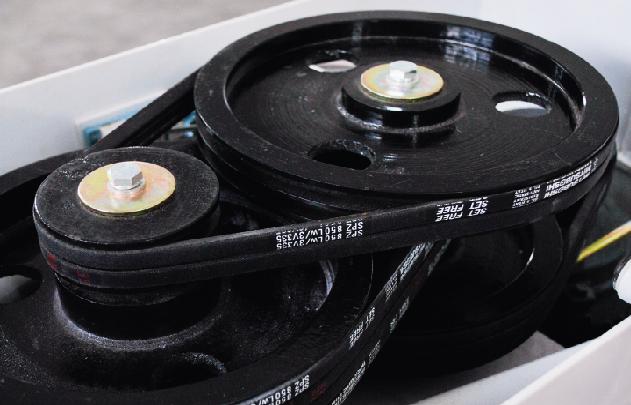

Belts of Samsung
Mixing bowl are made with 304 stainless steel, with the tensile process.
Single motor operation are used in MT-10, 15, 25. As above, optional choose 220V motor or 110/220V convert by inverter with 380V, to fit for different user’s demands from different country.
25A, 50A, 75A and 100A are all operated with double motor of 380V, mixing more powerful.
TECHNICAL PARAMETERS:
Type | Model | Dimension(L*W*H) | N/W | Voltage | Power | Hook Speed | Max flour weight | Notes |
High-Powered Spiral Mixer(Double motor, double speed) | 10 | 830*450*1100 mm | 220 KG | 110/220/380V | 1.5 KW | 130/260 r/m | 10 KG | Single motor, Double speed |
15 | 910*480*1220 mm | 240 KG | 110/220/380V | 2.4 KW | 130/260 r/m | 15 KG | Single motor, Double speed | |
25 | 990*560*1250 mm | 250 KG | 110/220/380V | 2.4 KW | 130/260 r/m | 25 KG | Single motor, Double speed | |
25 | 990*560*1250 mm | 300 KG | 380V | 3.5 KW | 130/260 r/m | 25 KG | Double motor, Double speed | |
50 | 1100*670*1440 mm | 400 KG | 380V | 5.6 KW | 130/260 r/m | 50 KG | Double motor, Double speed | |
75 | 1400*750*1600 mm | 750 KG | 380V | 10.5 KW | 130/260 r/m | 75 KG | Double motor, Double speed | |
100 | 1450*840*1600 mm | 900 KG | 380V | 13 KW | 130/260 r/m | 100 KG | Double motor, Double speed |
